Portable battery power for electric garden tools and outdoor work.

CONTEXT

The client needed one portable energy system to recharge electric gardening equipment while supplying lighting throughout outdoor work areas.

The system had to be easy to deploy, simple to operate and capable of working away from fixed electrical outlets.

Engineering Approach

EION configured the system around the expected outdoor loads, required portability and available charging options.

The resulting architecture combines 800 Wh of lithium battery storage with 500 W AC output, USB-A and wireless charging, 200 W solar input and Bluetooth monitoring.

This balance supports compatible garden-tool chargers, work lighting and smaller devices while keeping the system compact and transportable.

System Configuration

• 800 Wh lithium battery system
• 4S4P battery configuration
• 500 W AC output for compatible chargers and lighting
• Integrated USB-A outputs and wireless charging
• 200 W solar input for off-grid recharging
• Bluetooth connectivity with mobile app monitoring
• Dimensions: 250 × 220 × 180 mm
• Weight: 5.2 kg

Outcome

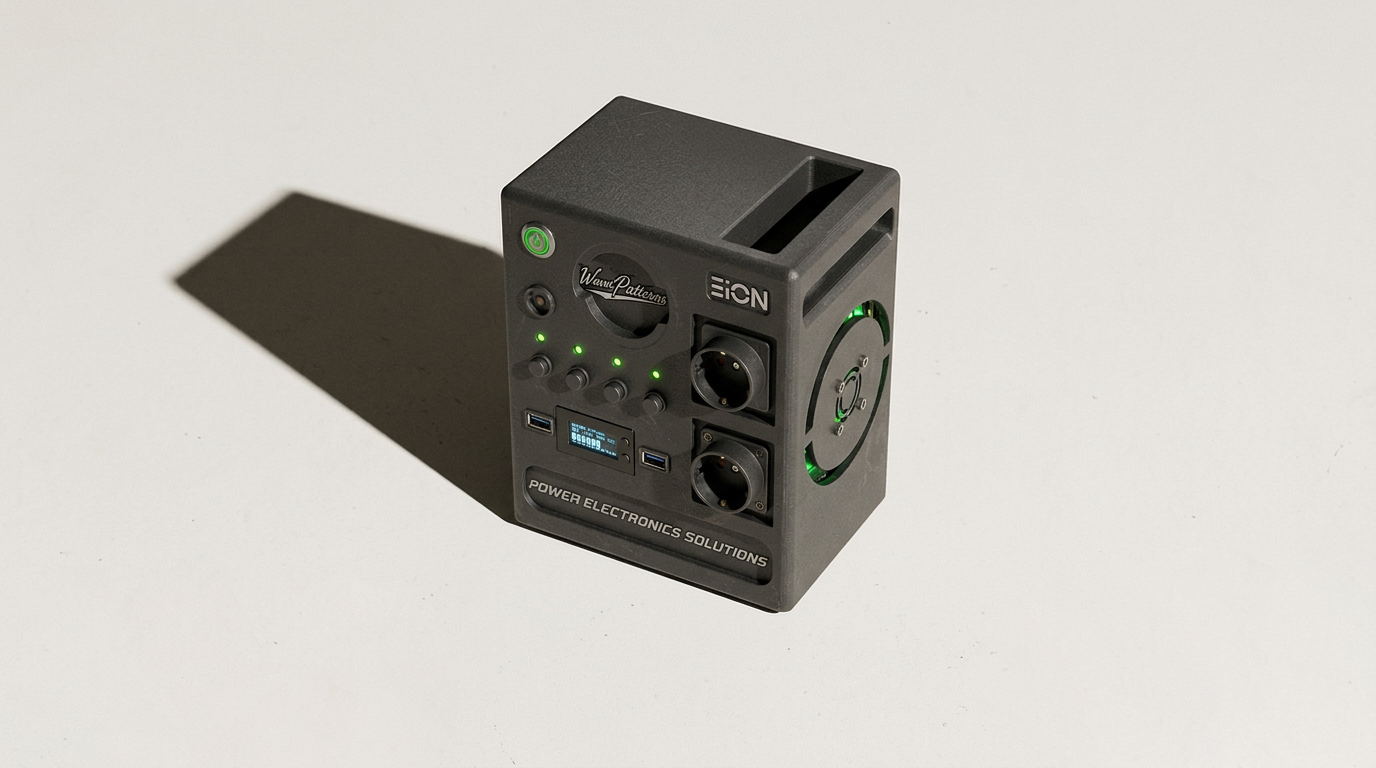

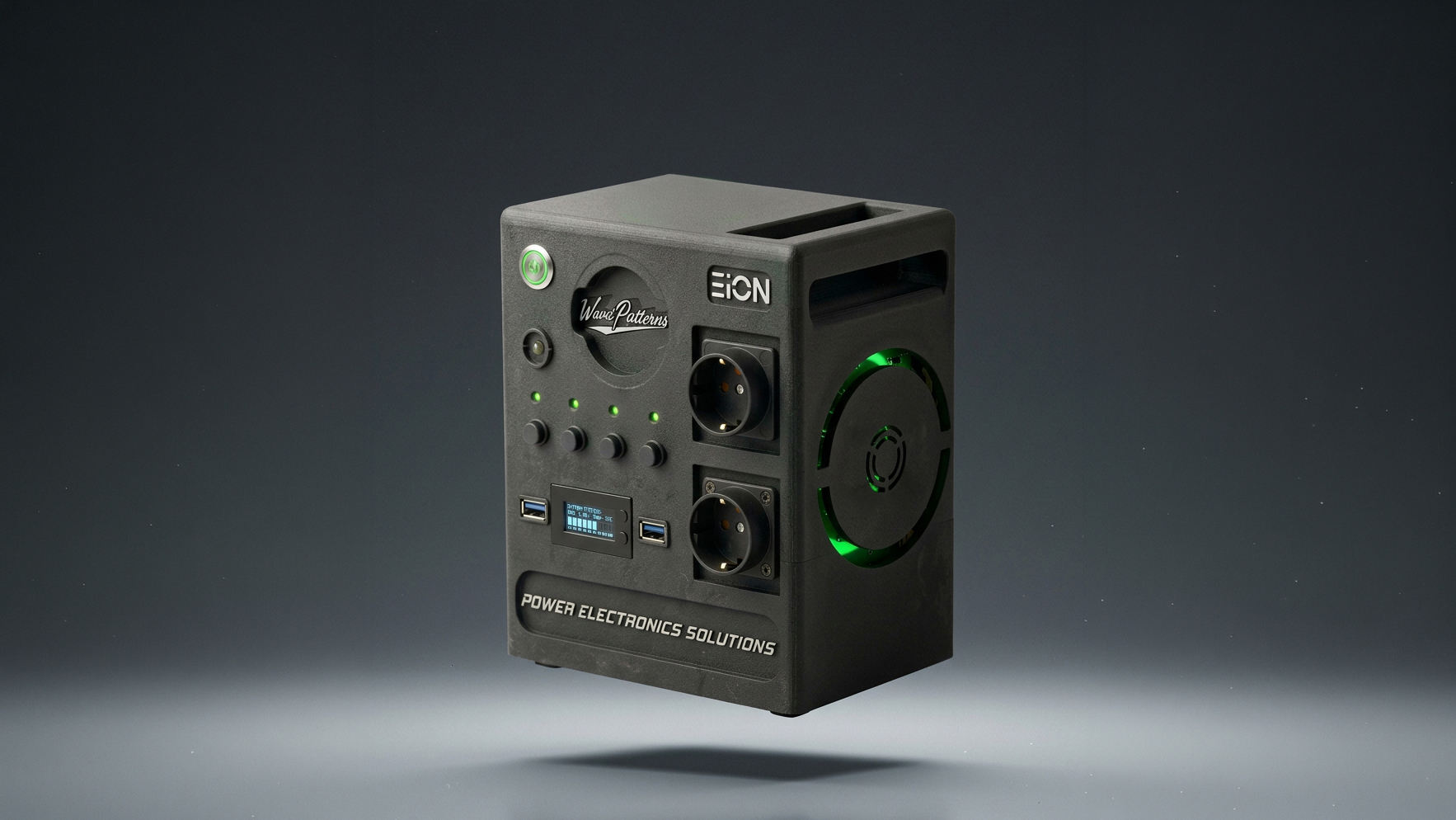

EULER provides mobile energy for compatible garden-tool chargers and lighting in outdoor work areas where fixed outlets are unavailable or inconvenient.

Solar charging supports operation away from the grid, while Bluetooth monitoring provides visibility into the system’s status.

Portable power engineered around real landscaping operations.
